Metra AX-ADFD100

General Features:

• All-in-One Interface for Replacing Factory Radios
• For 2007-up Ford vehicles
• Retains OnStar/OE Bluetooth
• Micro "B" USB updatable
• Adjustable gain control for chimes and OnStar
• Provides NAV outputs such as parking brake, reverse, mute and V.S.S.
• Provides accessory 12-volt 10-amp
• Adjustable gain control for overall volume on amplified systems
• Retains OE satellite (tuner must be separate from the radio)
• Retains balance, fade and digital fade
• Prewired Axxess ASWC-1 harness included (ASWC-1 sold separately)

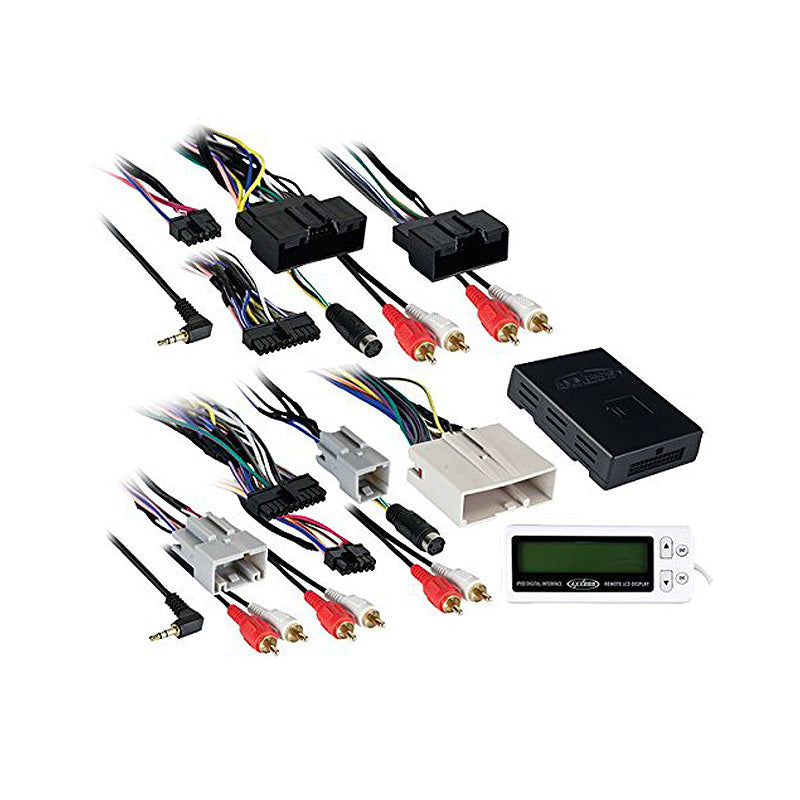

Kit Includes:

1. Axxess AX-ADBOX2 Interface
2. 16-pin harness with stripped leads
3. 22-pin to Ford 24-pin harness (A)
4. 22-pin to Ford 24 and 26-pin harness (B)
5. LCD Screen

AX-ADFD01 (A) Compatibility:

• Ford:
• 2007-2012 Edge
• 2008-2012 Escape
• 2007-Up Expedition
• 2008-2011 Explorer
• 2008-2011 Explorer Sport Trac
• 2009-2012 F-150
• 2011-2012 F-250/350/450/550
• 2005-2007 Five Hundred
• 2009-2012 Flex
• 2008-2011 Focus
• 2007-2012 Fusion
• 2008-2012 Taurus
• 2008-2009 Taurus X

• Lincoln:
• 2007-2008 Mark LT
• 2009-2012 MKS
• 2010-2012 MKT
• 2008-2012 MKX
• 2007-2012 MKZ
• 2007-Up Navigator

• Mercury:
• 2008-2010 Mariner
• 2008-2010 Milan
• 2008-2010 Mountaineer

AX-ADFD02 (B) Compatibility:

• Ford:
• 2011-Up Escape (4.3" screen only)
• 2011-Up Explorer (4.3" screen only)
• 2013-Up F150 (4.3" screen only)
• 2013-Up F-250/350/450/550 (4.3" screen only)
• 2011-Up Fiesta
• 2012-Up Focus (4.3" screen only)
