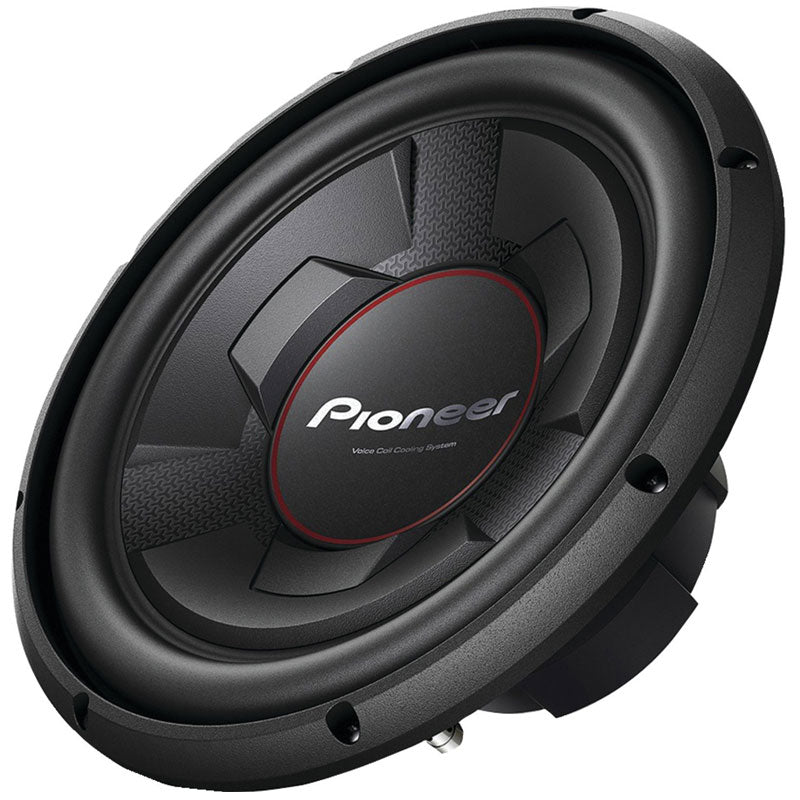

Pioneer TS-W126M

Features:

• 12" Champion Series Component Car Subwoofer
• Power Handling:
• Peak: 1300 watts
• RMS: 300 watts
• Recommended power range: 100 - 300 watts RMS
• Impedance: Single 4 ohm
• IMPP Composite seamless cone woofer for a rich bass sound
• Urethane surround for generous amounts of excursion
• Extended pole yoke improves linearity during long excursion
• Vented pole yoke allows better heat dissipation and increased power handling
• Extended excursion design provides longer travel to create loud bass output
• Large binding posts for heavy gauge wire
• Best tuned parameters provide superior sound quality and reliability
• 6-Layer long high temperature Aluminum voice coil design
• 30 oz large strontium magnet structure
• Frequency Response: 20-125 Hz
• Sensitivity: 96 dB
• Xmax: 11.7 mm
• Mounting Depth: 5.31"
• Cutout Dimensions: 11.06"

Specifications:

• Subwoofer Series: Champion (Pioneer)
• Subwoofer Size: 12"
• Peak Power Handling: 1300 watts
• RMS Power Handling: 300 watts
• Voice Coil(s): Single
• Impedance (Per Voice Coil): 4 ohms
• Frequency Response: 20 - 125 Hz
• Sensitivity: 96 dB
• Xmax (millimeters): 11.7 mm
• Subwoofer Design: Round / Circle
• Main Cone Color: Black
• Woofer Composition: Injection Molded Polypropylene - IMPP
• Woofer Surround: Urethane
• Subwoofer Grille: No
• Re-Cone Kit Available: No
