PLUG-N-PLAY A2B AMPLIFIER INTERFACE for 2023+ CVO AND 24+ Harley Davidson®- MSHD235
PLUG-N-PLAY A2B AMPLIFIER INTERFACE for 2023+ CVO AND 24+ Harley Davidson®- MSHD235 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
2-3 Processing Business Days. All USA order only - Ship 5-7 Business Days. We offer Expedited delivery on all eligible orders.
PLUG-N-PLAY A2B AMPLIFIER INTERFACE for 2023+ CVO AND 24+ Harley Da...
Description
Description

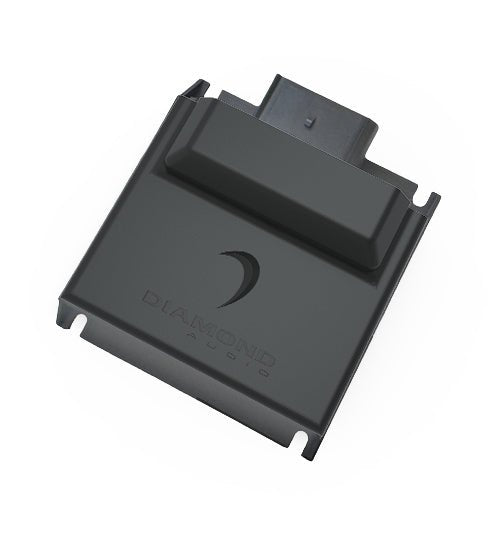

Diamond Audio MSHDA2B24 plug-and-play A2B interface designed for Harley-Davidson Skyline stereos
Superior Sound Performance
The Diamond Audio MSHD235 processor enables seamless integration of aftermarket amplifiers with the factory Harley-Davidson head unit using low-level (5-channel) 4.5V RMS RCA outputs. The perfect signal for Diamond Micro or Neo series amplifiers.
This plug-and-play kit connects directly to Harley’s A2B data network, retaining factory features such as chimes, volume control, fader/balance, and EQ presets for true OEM integration.
Delivering 5-channel RCA outputs at 4.5V RMS, it retains full OEM functionality—including volume, balance, fader, sub control, EQ presets, and voice calls while ensuring crystal-clear audio through its high 113 dB SNR and 24-bit/48 kHz processing.
Compact and easy to install without cutting or splicing, the MSHD235 provides a clean, reliable connection for enhanced sound performance with true OEM compatibility.
Product Features:
- A2B to 5-channel analog pre-amplifier and DSP audio interface
- Compatible with select 2023 CVO and 2024+ vehicles from Harley Davidson with Skyline stereos
- Converts factory systems to 5-channel analog RCA outputs
- Seamlessly adds aftermarket amplifiers to Skyline stereos
- Integrates with the OEM A2B bus and various OEM data networks
- Retains volume control, full fade, balance, sub control, EQ presets, and voice calls
- Compatible with Windows or macOS for software updates
- Plug and play installation, no cutting or splicing required

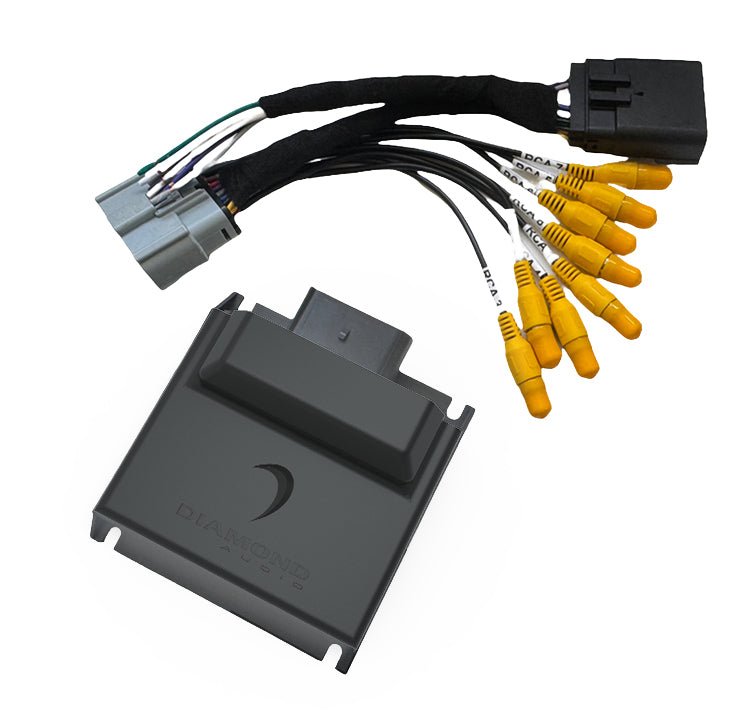

- Kit includes interface, wiring harness, and installation instructions
- Dimensions: 4" W x 4" L x 1-1/2" H
- 1-year Manufacturer's Warranty / 2-years if installed by a Diamond Audio authorized dealer.
Interface Specifications:
- Digital Input: A2B
- Digital Outputs: None
- Digital Outputs Supported: 24 bit / 48000 Hz
- Frequency Response (Digital): 18 - 24000 Hz
- Analog Output/s: 5 channels (RCA)
- Output Voltage (Peak): 13.8 volts
- Output Voltage (RMS): 4.5 volts
- Analog Output Type: Single-ended
- Signal to Noise Ratio (Analog): 113 dB
- Frequency Response (Analog): 18 - 24000 Hz
- Total Harmonic Distortion (THD): -94 dB
- Operational Voltage: 7 volts - 20 volts DC
- Amp Turn-On Current Limitation: 500 mA
