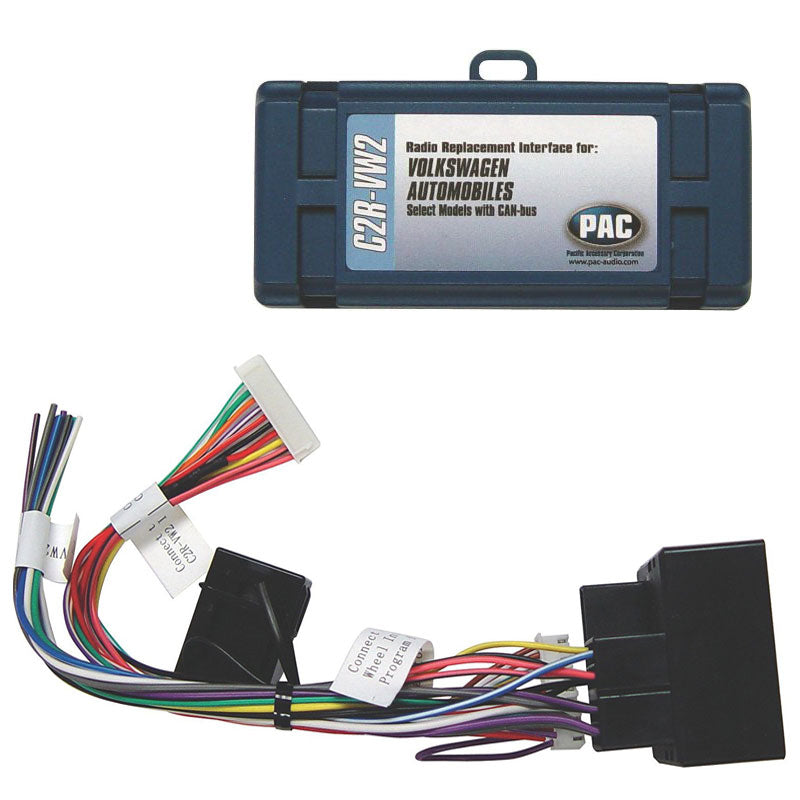

PAC C2R-VW2

Description

Provides navigation trigger wires and timed accessory output for replacing the factory radio and retains the factory-installed amplified audio system. Use a steering wheel interface module to retain the function of select factory controls (Please see the compatibility notes section for further details).

Features:

• 2002-up Volkswagen Radio Replacement Interface
• The C2R-VW2 allows you to replace the factory radio in 2002-20011 VW CANbus vehicles
• Built-In SWI-CAN to retain steering wheel controls
• Retains factory-installed amplifier
• PAC C2R-VW2 includes:
• Data controlled RAP accessory output wire
• Data controlled parking brake wire
• Data controlled reverse trigger wire
• Data controlled vehicle speed sense wire
• Data controlled illumination output wire

Compatibility List:

• Volkswagen
• 2012-2013 Beetle
• 2009-2013 CC
• 2006-2012 Eos
2002-2013 Golf
• 2006-2013 GTI
• 2002-2013 Jetta
• 2002-2013 Passat
• 2006-2010 Rabbit
• 2009-2013 Tiguan
• 2004-2010 Touareg

Compatibility Notes:

• 2011 Jetta will not provide a reverse output trigger
• 2010-Up vehicles the C2R-VW2 will not retain the digital amplifier in Dynaudio factory systems
• 2012-Up vehicles the C2R-VW2 will not retain the digital amplifier in Fender systems
• 2002-2005 vehicles, the C2R-VW2 will not provide a Reverse output trigger. This signal is unavailable on the date bus. You must be replacing a Double-Din factory radio. If the vehicle came with a factory Single-Din radio the C2R-VW2 is not compatible
• 2004-2007 Tourage will not retain digital audio amplified system seen when the vehicle is equipped with a factory navigation radio
